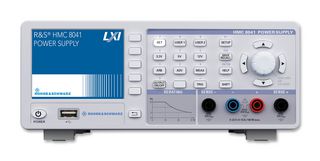

R&S HMC8041

The HMC8041 is a 10A/32V 100W 1-channel programmable Power Supply provides high energy efficiency, low heat dissipation and quiet fans, low residual ripple due to linear post regulation. Convenient parallel and serial operation via V/I tracking. Overvoltage protection (OVP) and overpower protection (OPP) for all outputs. FuseLink (freely combinable electronic fuses). EasyArb function for user-definable V/I curves. EasyRamp for simulating a start-up curve (directly programmable on device), sequencing (sequenced start of channels), analogue input for external control via voltage (0 to 10V) and current (4 to 20mA), trigger input for starting/controlling EasyArb, data logging to USB flash drive in CSV format. Ideal for engineering lab, automatic test equipment (ATE) and production environment.

• 4mm Safety sockets front connectors
• 14bit Resolution

애플리케이션

Test & Measurement, Power Management, Industrial

메모

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
