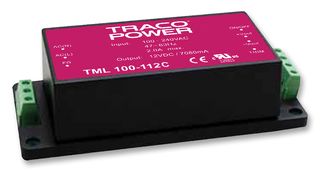

TML 100-124C

TML 100-124C is a 100W TML 100C series AC/DC power supply in a fully encapsulated plastic case. Active power factor correction and high efficiency across the full load range qualify this module for installation in energy-related products. This features screw terminals for easy installation. This is accompanied by an international safety approval package for worldwide markets. It includes overvoltage, short circuit protection. Approved by IEC/EN 60950-1, UL 60950-1, IEC/EN 62368-1, UL 62368-1.

• Nominal input voltage range from 100 to 240VAC (universal input), output voltage is 24VDC
• Maximum output current is 4200mA, efficiency is 92%
• Very compact power modules with screw terminal connection
• Active PFC, power factor <gt/>0.95 (230VAC), <gt/>0.99 (115VAC)
• High efficiency, remote on/off input
• Adjustable output voltage ±5%, LED output indicator
• Low leakage current, EMI meets EN 55032, class B, protection class I and class ll prepared
• Switching frequency range from 100 to 133KHz (pulse width modulation PWM)
• Plastic resin + fiberglass (UL 94V-0 rated) casing material
• Operating temperature range from -25 to +70°C, length is 140mm, width is 62mm, depth is 36.6mm
