278-431-000

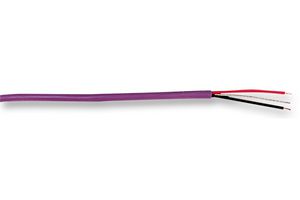

Multipair Cable, Audio, Per M, Screened, 1 Pair, 0.34 mm²
입고 시 알림 요청
| 수량 | 가격 |
|---|---|
| 1+ | ₩4,096 |
제품 정보
제품 개요
The 278-431-000 is a 22AWG 1-pair purple extended AES/Analogue LSZH installation Cable with bare ultra-pure oxygen free copper wire conductors and foam skin polyolefin insulation. It provides a solution for the extended distance transmission of 96kHz AES/EBU digital audio-over 150m without active equalisation. It is also suitable for long analogue audio runs and any critical balanced data signal that requires low capacitance. It is foil screened pairs with polyester overwrap to keep the overall diameter to a minimum-pairs should be sleeved with PVC or heat-shrink sleeving when broken out for termination. Jacket material specified as the thermoplastic polymer SHF1, compliant with IEC 60092 electrical installations.
- CPR: Not Yet Qualified
- Conductors for low capacitance and excellent attenuation figures
- Electrically engineered for long distance 96KHz digital audio transmission
애플리케이션
Audio
기술 사양
Screened
-
-
Red
-
Copper
Purple Series
1 Pair
0.34mm²
-
7 x 0.25mm
LSZH
4.5mm
기술 문서 (1)
278-431-000의 대체 제품
1개 제품을 찾았습니다.
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
최종후의 중요 제조 공정이 이루어진 국가원산지:Italy
최종후의 중요 제조 공정이 이루어진 국가
RoHS
제품 준수 증명서
