75-52446

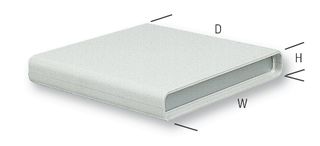

The 75-52446 is an IDAS Case made of high quality ABS (Acrylonitrile Butadiene Styrene) ideal for desktop applications. The construction consists of a top, base and a series of spacer mouldings which are used to in crease the unit height in increments of 35mm. The construction consists of a top, base and a series of spacer mouldings which are used to increase the unit height in increments of 35mm. Four aluminium pillars are bonded to the top cover. The spacer and base mouldings are positioned on these and the whole assembly is screwed together using fixings through the base and into tapped holes in the pillars. Provision is made in the mouldings for two alternative mounting positions for the front panels. The first position is designed to locate an alternative 3mm panel. The second position is ideal for mounting 1.6mm dummy panels.

• UL94-HB Flammability rating
• -40 to 80°C Temperature range

애플리케이션

Industrial

목차

Cover mouldings, Tilt and swivel handle, Cross bar, 2x Front panels, Spacers, 4x Self-adhesive feet, 4x Case screws and 4x PCB mounting clips.
