T0050116799

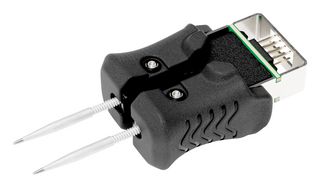

T0050116799 is a RTWMS 008 S NW micro soldering and desoldering tip. The adjustability functions with Allen key: 1.5mm possible if needed (±80° rotation angle adjustment + vertical length adjustment of ± 1.2mm). Active tip cartridge system allows for easy exchange of soldering tip even with a hot desoldering tweezer, all without needing an extra tool or further adjustment. The parallel sliding block allows for increased productivity with the pre-adjusted ready-to-use pairwise tip design.

• Extremely short heat-up time is 5sec
• Maximum precision during soldering process with short tip-to-grip distance and optimized tip design
• Precise positioning ensured with unique parallel sliding block guide
• No alignment necessary after tip change with pairwise design, fastest tweezer tip change
• Unique intelligent tweezers tips, chisel tip
• Works with WXMTS and WXMT
• Improved comfort and safe handling with new ergonomic soft grips
• High performance/high productivity, quick response time
• 0.8mm tip width, 2 x 40W power consumption, 12VAC voltage rating
• Temperature range from 100 to 450°C
