2610019225011

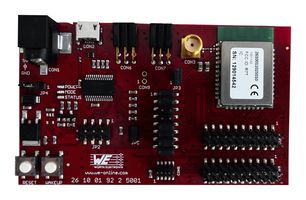

2610019225011 is an evaluation kit for CORDELIA-I radio module. The EV-Board offers the user, the possibility to develop hard- and software for compatible radio module. It can be connected to an USB port of a PC and provides a serial (virtual) COM port for interfacing the communication interface of the module. The Cordelia-I is a compact WLAN radio module based on IEEE 802.11 b/g/n intended to be used as an IoT connectivity sub-module to provide secure cloud connectivity to an embedded system. The module acts as bridge between a host MCU on the end system and cloud platform. The edge castellated connections, smart antenna configuration and an easy-to-use AT-style command interface enables easy integration of Cordelia-I into any embedded application. Whether a serial cable replacement or low power IoT application with cloud connectivity, the Cordelia-I WLAN module offers a robust and standard compliant wireless connectivity solution for low-power and low-medium throughput applications.

• Plug-and-Play secure IoT connectivity
• Fully compliant to RED including the delegated regulation for cybersecurity 2022/30
• Zero touch provisioning in the field using QuarkLink
• IEEE 802.11 b/g/n, 2.4GHz
• Secure UART-to-cloud bridge (transparent mode)
• Small form factor: 19 x 27.5 x 4mm
• Smart antenna configuration (2-in-1 module)
• Output power +18dBm peak (1DSSS)
• Receive sensitivity -92dBm (1DSSS, 8% PER)

목차

EV-board with Cordelia-I radio module, Himalia 2.4GHz dipole antenna, USB-2.0-Typ-A to USB-2.0-Micro-B cable, Power supply, Cardboard Box (230mmx230mmx78mm), ESD safe cover.
