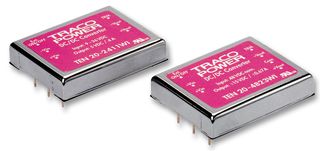

TEN 20-2412WI

The TEN 20-2412WI is a high performance 20W DC/DC Converter Module features ultra wide 4:1 input voltage ranges 9 to 36VDC and 12VDC output with industry-standard footprint. A very high efficiency allows an operating temperature range of -40 to 85°C. A built-in EMI input filter complies with EN 55022, class-A. The standard features include 12VDC output voltage, remote ON/OFF, output voltage trimming, overvoltage protection and short-circuit protection. The applications for this converter are everywhere where isolated, tightly regulated voltages are required.

• Adjustable output
• Shielded metal case with insulated base plate
• 1500VDC I/O isolation
• 81% Typical efficiency
• 24VDC Nominal input voltage

애플리케이션

Communications & Networking, Consumer Electronics

메모

NRND - Not Recommended for New Designs
